Imagine you’re at your local hardware store, faced with an array of door hinges. If you haven’t measured beforehand, you might find yourself unsure of what will work best with your door. Just as you wouldn’t buy shoes without trying them on, you shouldn’t pick hinges without measuring your existing ones. In this article, I’ll walk you through the process, step by step. So, grab your measuring tape, and let’s dive in!
Understanding Door Hinge Basics
Before we start measuring, let’s get on the same page about what a door hinge is. A door hinge is that nifty little device that allows your door to swing open and closed. It consists of two metal plates joined by a pin, which lets the door pivot. Most common types are the butt hinge, which is typically used on interior doors, and the continuous hinge, which runs the entire length of the door.
You might find hinges made from various materials, including steel, brass, or stainless steel. The type you choose can depend on factors like door weight and style. Also, hinges come in different sizes and finishes, so understanding your current hinge’s dimensions is essential before making a selection.
Tools You’ll Need
To measure your hinge correctly, you’ll need a few basic tools. Don’t worry; you probably already have these at home. Here’s what you’ll need:
- Measuring tape: A standard tape measure will work just fine.
- Flathead screwdriver: This will help you remove the existing hinge if needed.
- Pencil or pen: For jotting down your measurements.
- Paper: To keep track of the sizes you measure.
Once you have everything lined up, you’re ready to move on to the measuring part. Honestly, measuring hinges isn’t something that requires expert skills. If you can use a tape measure to measure your height, you can certainly handle this task.

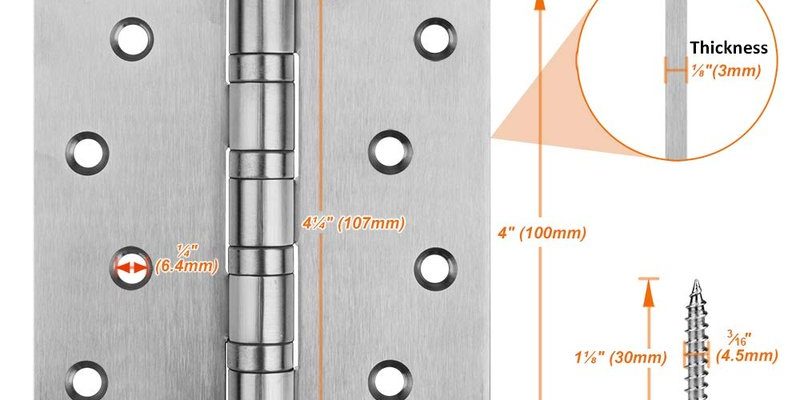

Measuring the Hinge Leaf Size
The first measurement you want to take is the hinge leaf size. The hinge leaf is the flat part that attaches to the door and the frame. Here’s how to do it:
1. Remove the Hinge: If your hinge is already installed, start by unscrewing it from the door and the frame using your flathead screwdriver. Be careful not to drop any screws; they can be quite sneaky!
2. Measure the Height: Take your measuring tape and measure the height of the hinge leaf from top to bottom. Make sure to measure in millimeters or inches, depending on what you’re comfortable with.
3. Measure the Width: Next, measure the width of the hinge leaf. This is the side that attaches to the door frame. Make a note of both measurements.
These two numbers will help you determine the size of the hinge you need. If you’re replacing them with a universal hinge, make sure it fits within these dimensions.
Determining the Hinge Thickness
The hinge thickness is often overlooked but is just as important. A hinge that is too thick can create problems with how the door opens or closes. Here’s how to measure it:
1. Lay the Hinge Flat: If you’ve removed the hinge, lay it flat on a surface. If it’s still attached, just measure the thickness at the center where the two leaves meet.
2. Use Your Measuring Tape: Measure the thickness of the hinge at its center. You’ll get a better result if you measure at the part closest to the pin since that’s where the most weight is supported.
This simple measurement ensures that the new hinge will fit perfectly, maintaining the door’s functionality.
Measuring the Hinge Pin Diameter
The hinge pin is the small rod that holds the two leaves together. Sometimes, you may need to measure the pin diameter if your new hinge requires a specific size. Here’s how to get this measurement:
1. Remove the Pin: If possible, remove the pin from the hinge. You can usually knock it out with a small hammer or by tapping the bottom end with a screwdriver.
2. Take the Measurement: Use your measuring tape to measure the diameter of the pin. It’s usually a small measurement, so keep it in millimeters.
This can ensure that the hinge fits snugly and functions as it should, which is super important if you want your door to stay aligned and not squeak!
Choosing the Right Replacement Hinge
Now that you’ve got your measurements down, it’s time to look for a replacement hinge. You might wonder, “How do I choose the right one?” Here are some tips:
1. Match Dimensions: Make sure to select a hinge that matches all the dimensions you’ve gathered. This includes height, width, thickness, and pin diameter.
2. Consider Material: Think about the material that best suits your door. For example, if your door is heavy, consider a sturdy steel hinge. If it’s a decorative door, a brass hinge might be your best bet.
3. Finishes Matter: Different finishes like brushed nickel, oil-rubbed bronze, or polished chrome can affect not only the look but also the durability of the hinge. Choose a finish that complements your door and hardware.
Here’s the thing: You can often find hinges at local hardware stores or online. If you’re unsure, asking an employee for assistance can help you find what you need.
Installing Your New Hinges
You’ve measured, chosen your hinge, and now it’s time for installation. Don’t worry; this part is straightforward. Here’s a quick guide:
1. Position the Hinge: Place the hinge on the door frame where your old hinge was attached. Align it with the markings that were left or the screw holes.
2. Screw It In: Using your previously saved screws, start screwing the hinge into the door frame. Tighten it securely but be careful not to strip the screws.
3. Attach to the Door: Now, hold the door up and align it with the hinge. Screw the hinge into the door and check to ensure it swings freely.
If everything seems right, stand back and give it a test swing. You’ll know you’ve done it right when the door opens and closes smoothly!
Final Thoughts on Measuring Door Hinge Size
Measuring door hinge size for replacement may sound tricky, but it’s really about taking your time and getting the dimensions right. Remember, measuring the hinge leaf size, thickness, and pin diameter is key to a successful hinge replacement. With the right tools and a little patience, you can ensure your door operates seamlessly.
So next time you find yourself in need of a hinge replacement, you’ll feel confident knowing exactly how to measure for it. Doing this simple task can make your home repairs easier, and it saves you a trip back to the store. Happy DIYing!
